DATA SHEET

connx-whitefor DB2

CONNX Products Free Trial

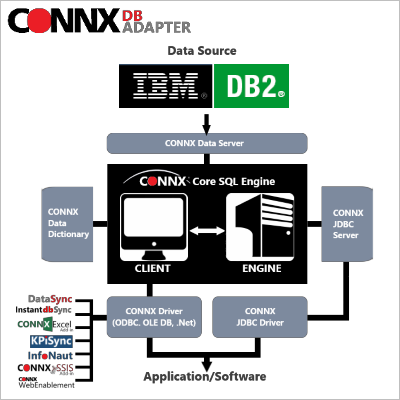

CONNX DB Adapter for DB2.


The CONNX for DB2 Module provides secure, real-time, read/write access to DB2 databases running on MVS, OS/390, z/OS, OS/400, OS/2, Windows 2000/XP/2003/Vista/2008, Linux, AIX, HP-UX, and Solaris. In conjunction with other modules in the CONNX suite, you can perform seamless joins between DB2 data and any other supported database. CONNX ODBC DB2 access is fast and efficient.

Join DB2 with Multiple

Data Sources
In conjunction with other products in the CONNX suite, you can perform seamless joins between two or more supported disparate databases using ODBC, OLE DB, JDBC, and .NET. CONNX for DB2 access is fast and efficient. With CONNX, a single metadata model can be created that spans all enterprise data sources and applications requiring data access.

The result is an enterprise-wide view of data that provides a reusable standards-based framework for information access. To the user or application, data appears as if it existed in a single federated relational database.

SQL & CONNX for DB2
CONNX supports ANSI SQL (Insert, Update, Select, and Delete); group by, distinct, aggregate (AVG, MIN, MAX, SUM, and COUNT), and all substring, string, date, conversion, and math functions. Nested inner and outer left/right joins are supported, as well as subqueries and correlated subqueries. CONNX also supports Unions and Insert/Select.

Views
CONNX supports the creation of views, which facilitate hiding table relationships from the end user. CONNX Views facilitate the creation of heterogeneous joins between multiple disparate databases.

Data Conversions
CONNX supports over 600 data types and performs bi-directional data conversions for data updates and retrieves.

Popular Program Access
As with all databases supported by CONNX, CONNX for DB2 has been tested with Microsoft Excel, Microsoft Visual Studio, including Visual Basic/C++, etc., Delphi, PowerBuilder, Impromptu, ReportNET, Lotus Approach, Crystal Reports and vendors such as Cognos and Business Objects. CONNX for DB2 also supports ADO and ASP.NET (Active Server Pages) and JDBC is used with Websphere and Apache Tomcat.

Compliance
ODBC Full Compliance (level 2)
JDBC Type 3 Driver
OLE DB 2.5 Driver
.NET 2.0 Driver and above

Security Preserved and Extended
The CONNX Data Dictionary provides additional field and table-level encryptable security by group or user, ensuring the security of sensitive information. CONNX also supports row level security with CONNX Views. Additionally, the CONNX Data Dictionary is encrypted to secure sensitive information.

Table Redefinition
The CONNX Data Dictionary supports multiple record layouts of the same DB2 files, based on a “record type” field.

Record Definition Import
CONNX imports table definitions directly from DB2 Databases.

Learn more about DB2

DB2

Features

Benefits

Federate with other relational,    non-relational, net- worked,  hierarchical, object, and flat-file  database information through a  single, easy-to-use, SQL-based  interface.

Data at your fingertips – anything    from legacy data to recently added content to application information  anytime, anywhere.

A reusable standards-based framework for information access that drastically lowers the short and long-term costs.

Boosts productivity an  efficiency of end users and application builders by connecting different functions within the enterprise.

Shortens development time on projects using open standards

Improves time to market.

Provides  cost-effectiveness.

Preserves initial investment.

Access from Microsoft Windows, Unix and Linux productivity tools, database applications, and development environments.

Enhances flexibility for database use in a multitude of OS environments and BI tools.

Proven scalability, supporting any number of client machines. Compatible with any .NET- ODBC-, OLE DB-, or JDBC compliant application.

Enables use of open standards interfaces with in- vestment protection.

Minimizes resource utilization

Utilizes current infrastructures with no additional

Open-platform technology that integrates with existing systems so you can manage them with

Extends the functionality and life of existing architecture.

Windows, Unix and Linux client support.

Supports existing IT infrastructure at no additional cost.

Field and record level protection.

Provides maximum levels of data security

Heterogeneous joins for the creation of reports that consolidate data spanning multiple data

Maintains integrity of data.

Real-time read/write access to data.

Enhances flexibility.

Multiple views support.

Extensive data type conversion support.

Minimizes complexity for end users.

Comes bundled with the CONNX InfoNaut querying and reporting tool that enables users to instantly view their data.

Easy to install and use Standard version of InfoNaut included with CONNX.
